Snowblower Auger Gearbox Oil: The #1 Mistake Killing Your Machine
That sickening crunch of grinding metal from the front of your snowblower is a sound no homeowner wants to hear. Often, this is the death rattle of the auger gearbox, a critical component that most people ignore until it’s far too late. The root cause is frequently a simple, preventable issue: old, contaminated, or incorrect gearbox oil.
Neglecting this small maintenance task can lead to catastrophic failure, turning a valuable piece of winter equipment into a useless garage ornament. This guide will walk you through everything you need to know about your snowblower’s auger gearbox oil. Understanding and applying this knowledge will save you from costly repairs and ensure your machine is ready to tackle the heaviest snowfalls.
You'll Learn About
Why Your Snowblower’s Gearbox is a Ticking Time Bomb
The auger gearbox is the heart of your snowblower’s snow-clearing power. It takes the high-speed rotational force from the engine and converts it into the high-torque, lower-speed rotation needed to drive the augers. This process generates immense pressure and friction between the internal gears.
Without proper lubrication, this friction leads to rapid wear, metal shavings contaminating the system, and eventually, stripped or shattered gears. Symptoms of a failing gearbox include grinding or whining noises, the auger failing to turn under load, or visible leaks of dark, sludgy oil. Ignoring these signs is a direct path to a seized gearbox, which can cost hundreds of dollars to replace.
The Great Debate: Gear Oil vs. Specialized Grease
One of the most common points of confusion is whether a gearbox needs oil or grease. The answer depends entirely on your machine’s design, and using the wrong one can be disastrous. Always consult your owner’s manual first, as it is the ultimate source of truth for your specific model.
Generally, gearboxes with robust seals designed to hold a liquid lubricant will specify a gear oil. Conversely, many manufacturers, especially for cast-iron gear cases, recommend a specialized semi-fluid grease. This thicker lubricant is less likely to leak from gearboxes that may not be perfectly sealed.
When to Use Gear Oil
If your manual specifies gear oil, it will typically be a heavy-weight lubricant like SAE 80W-90 or SAE 75W-140. These oils are designed to withstand the extreme pressure (EP) between gear teeth. A crucial consideration for older machines is whether the gearbox contains “yellow metals” like brass or bronze worm gears.
Some modern GL-5 rated gear oils contain sulfur additives that can be corrosive to these softer metals over time. If you suspect your machine has bronze gears, it is safer to use a GL-4 rated gear oil, which is specifically formulated to be safe for yellow metals. For most modern machines, a high-quality synthetic GL-5 is the superior choice for cold-weather performance.
The Case for Specialized Snowblower Grease
Many snowblowers, particularly popular models from brands like Ariens and MTD, call for a very specific type of grease known as NLGI #00 or “00” grease. This is a semi-fluid grease, often called “flowable” or “self-leveling,” which has the consistency of a thick pudding.
This formulation allows it to coat the gears thoroughly like oil but is thick enough to resist leaking. Using standard wheel bearing grease (NLGI #2) is a critical error; it is too thick and will be flung to the sides of the gearbox, starving the gears of lubrication. If your manual calls for a specific OEM lubricant, such as Ariens L3 Synthetic Gear Lube, it is always best to use it.
The Ultimate Gearbox Lubricant Showdown
Choosing the right lubricant is critical for the longevity and performance of your snowblower’s auger gearbox. The options can be confusing, ranging from standard gear oils to specialized synthetic greases. This table breaks down the most common types, their ideal applications, and key characteristics to help you make an informed decision.
| Lubricant Type | Best For | Viscosity/Grade | Pros | Cons |
|---|---|---|---|---|
| Standard 80W-90 Gear Oil (GL-4/GL-5) | Older models or those specifying gear oil; especially important to use GL-4 for gearboxes with brass/bronze components. | 80W-90 | Widely available, cost-effective, good general protection. | Can be corrosive to soft metals if GL-5 is used incorrectly; poorer cold-weather performance than synthetics. |
| Synthetic 75W-140 Gear Oil (GL-5) | High-performance and modern snowblowers operating in extremely cold climates. | 75W-140 | Excellent cold-flow properties, superior protection under heavy loads, longer service life. | More expensive, may be too thin for older gearboxes with worn seals. |
| NLGI #00 Grease (Semi-Fluid) | Many MTD, Cub Cadet, and Craftsman models; gearboxes prone to minor leaks. | NLGI #00 | Flows to coat gears but resists leaking, excellent for gearboxes not designed to hold oil. | Can be difficult to find locally; requires careful filling to avoid air pockets. |
| Specialized OEM Synthetic Grease (e.g., Ariens L3) | Specifically for brands that formulate their own lubricant, such as Ariens. The topic of Toro snowblower auger gearbox oil often brings up similar brand-specific needs. | Varies (Often NLGI #0 or #00) | Engineered for the specific metallurgy and tolerances of the brand’s gearboxes; guaranteed compatibility. | Highest cost, may only be available from dealers. |
The Step-by-Step Guide to Changing Your Auger Gearbox Oil
Servicing your gearbox is a straightforward process that can be done with basic hand tools. Performing this maintenance at the start of each winter season is the best way to ensure reliability. The process differs slightly depending on whether your gearbox has a drain plug.
Pre-Service Checklist: Tools and Materials
Before you begin, gather everything you’ll need. This includes the correct type and amount of new lubricant, a socket or wrench set, a drain pan, shop rags or paper towels, and a funnel. For gearboxes without a drain plug, a fluid extractor or suction gun is highly recommended.
The “Easy Method”: Servicing a Gearbox with a Drain Plug

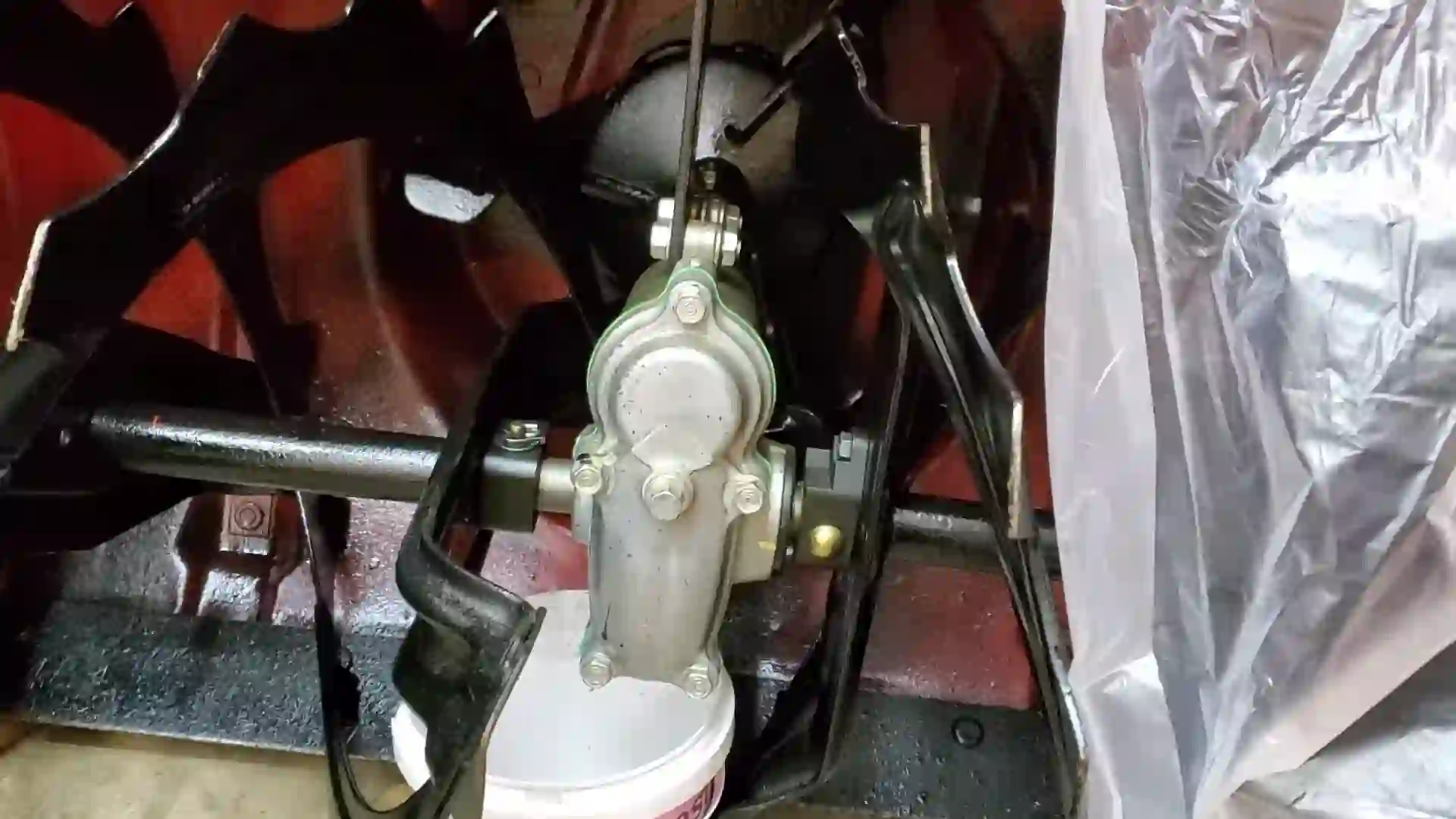

If you’re lucky enough to have both a fill and a drain plug, the job is simple. Start by running the snowblower for a few minutes to warm the old oil, which helps it drain more completely. Position the drain pan, then remove the upper fill plug first, followed by the lower drain plug. Removing the fill plug first allows air to enter, preventing a vacuum and ensuring a smooth flow.

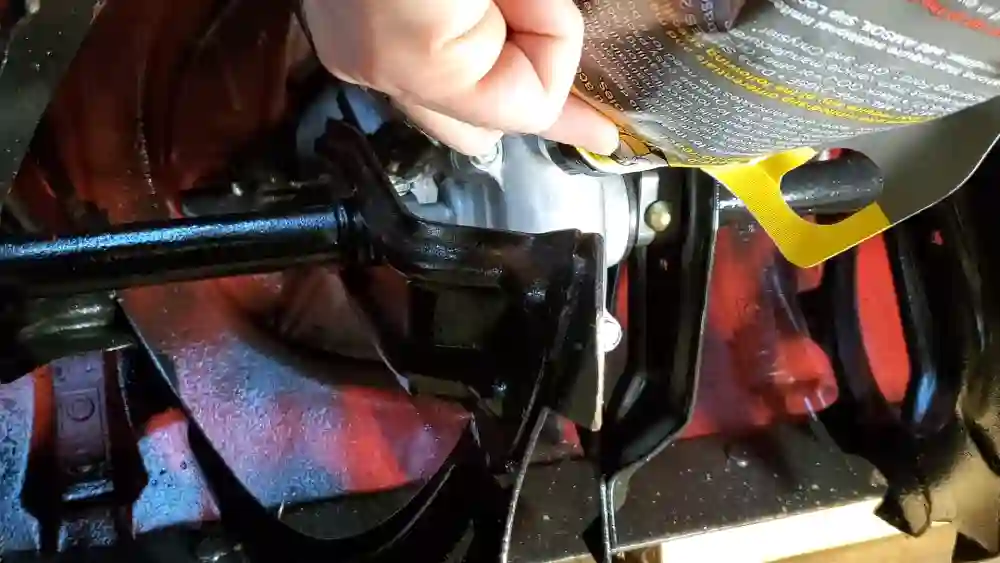

Once all the old oil has drained, inspect it for metal shavings, which can indicate excessive gear wear. Clean both plugs and reinstall the drain plug, being careful not to overtighten it. Using a funnel, slowly add the new lubricant through the fill hole until it reaches the bottom of the threads and begins to weep out. This is the correct fill level. Finally, reinstall the fill plug, and you are done.
The “Expert Trick”: Servicing a Gearbox *Without* a Drain Plug
Many modern snowblowers, especially those made by MTD and its sub-brands, frustratingly lack a drain plug to save on manufacturing costs. For these models, you have two primary options. The first and most effective method is to use a fluid suction gun or pump with a small hose inserted into the fill hole to suck out the old lubricant.
The second method is messier but still works. After removing the fill plug, you must carefully tip the entire snowblower forward onto its auger housing, allowing the old oil to drain out of the fill hole into your pan. This can be awkward, and it’s important to drain the fuel tank first. No matter which method you use, the refilling process is the same: add new lubricant until it is level with the bottom of the fill plug hole.
Pro-Level Tips for a Bulletproof Gearbox
Beyond simply changing the lubricant, a few professional practices can significantly extend the life of your gearbox. Adopting these habits will ensure your machine performs flawlessly for years to come.
How Often Should You Actually Check and Change the Oil?
While many manuals claim the gearbox is “lubricated for life,” this is rarely true under real-world conditions. A proactive approach is best. Check the lubricant level at the beginning of every season by removing the fill plug. A full change is recommended every 25-50 hours of operation or every 2-3 seasons, whichever comes first. If you frequently clear heavy, wet snow or ice, consider annual changes.
The Hidden Danger of Overfilling Your Gearbox
More is not better when it comes to gearbox lubricant. Overfilling can cause pressure to build up as the gears turn and the lubricant heats up. This pressure can blow out the axle seals, leading to persistent leaks and eventual lubricant starvation. Always follow the rule of filling only to the bottom of the fill plug opening with the machine on a level surface.
Synthetic vs. Conventional: Is the Extra Cost Worth It?
For a component that holds such a small amount of lubricant, the cost difference between conventional and synthetic is minimal. Synthetic lubricants offer significant advantages, especially for snowblowers. They maintain their viscosity much better in freezing temperatures, providing superior protection during cold starts when most wear occurs. For instance, the maintenance for a Honda Snowblower 828 might be enhanced by using a high-quality synthetic. They also offer better resistance to breakdown under the high shear forces inside a gearbox.
Troubleshooting Common Auger Gearbox Problems
Even with proper maintenance, issues can arise. Understanding the symptoms can help you diagnose and fix problems before they become catastrophic failures. Timely intervention is key to avoiding a full gearbox replacement.
Leaking Gearbox: What’s the Cause and How to Fix It?
The most common cause of a leak is a failed auger shaft seal. These seals can dry out over time or be damaged by debris wrapped around the auger shaft. Replacing them is often a complex job that requires significant disassembly of the auger housing. Sometimes, a leak is simply due to loose bolts on the gearbox housing, which should be checked and tightened first.
Grinding Noises: The Unmistakable Sound of Trouble
Grinding or howling noises that change with auger speed are a clear sign of internal damage. This is often caused by a lack of lubrication that has allowed the gears to wear excessively. If you catch it early, a fluid change might quiet it down, but typically, the noise indicates that the worm gear, the main gear, or both are damaged and require replacement. This is a common issue discussed in forums about specific brands, such as those focusing on John Deere snowblower gearbox oil.
