NXR Range Problems? Your Ultimate Guide to Fast Fixes

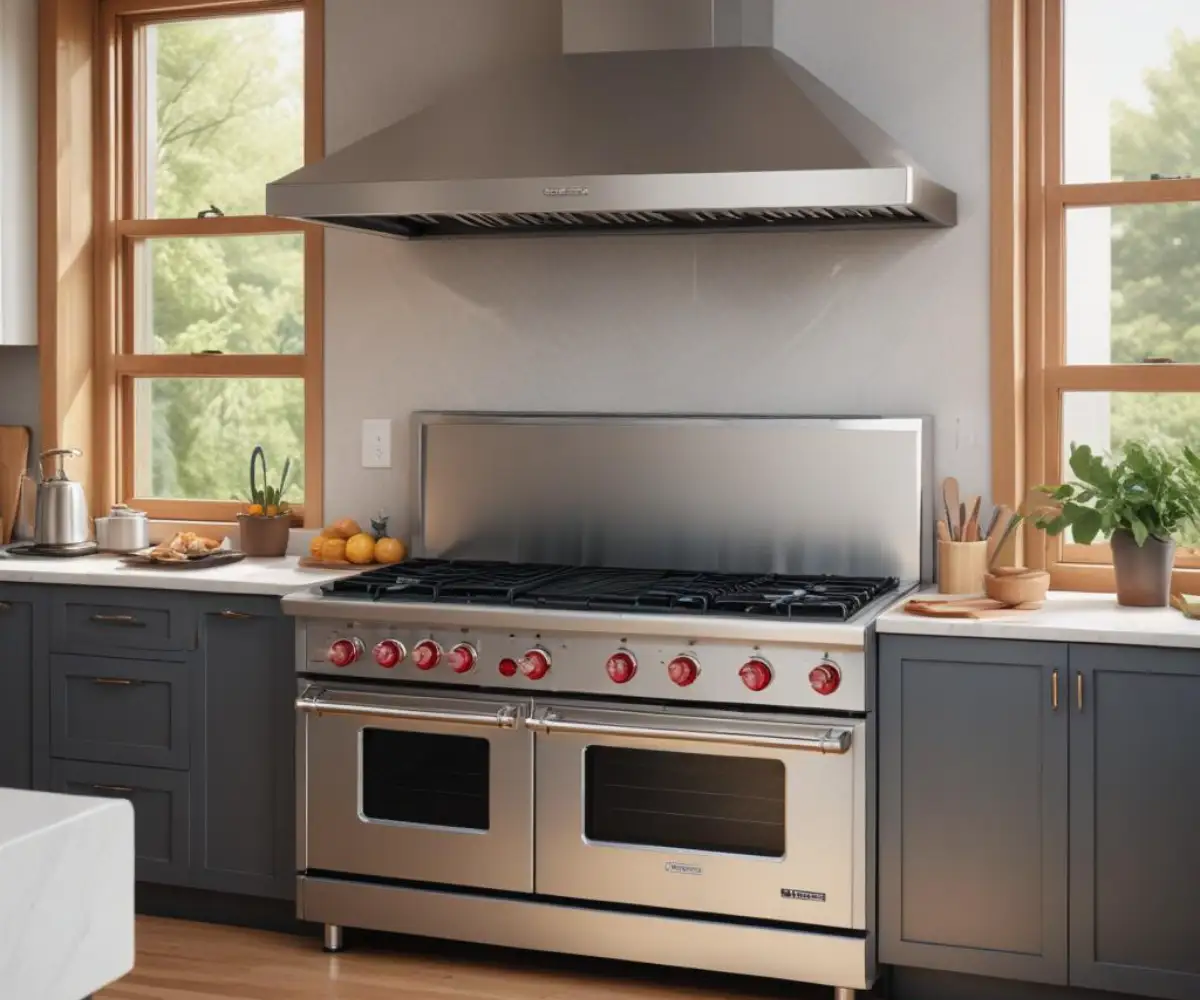

NXR ranges are known for bringing professional-style cooking into home kitchens. They offer powerful burners and robust construction, making them a popular choice for serious cooks. However, like any sophisticated appliance, they can encounter issues that disrupt your culinary flow.
This guide provides a comprehensive overview of the most common NXR range problems. We will explore the root causes and deliver actionable, step-by-step solutions to get your appliance working perfectly again.
You'll Learn About
Diagnosing the Most Common NXR Range Problems
Understanding the specific issue is the first step toward a successful repair. Most problems with NXR ranges fall into a few common categories, from minor annoyances to urgent safety concerns. Identifying your specific problem is key to finding the right solution.
The #1 Frustration: Burner Ignition Failures
The most frequently reported issue is the burner failing to ignite. You hear the repetitive clicking of the spark igniter, but the burner never lights, or it takes an unusually long time to catch a flame. This problem is often frustrating but is usually simple to fix.
The primary cause is an obstruction between the spark igniter and the burner head. Spilled food, grease, or even residual cleaning liquid can block the path of the spark or the flow of gas, preventing ignition.
Weak, Yellow, or Uneven Burner Flames
A healthy gas flame should be a vibrant blue with a small yellow or orange tip. If your NXR range produces a weak, noisy, or mostly yellow and orange flame, it’s a clear sign of a problem. This indicates an improper ratio of gas to air, which reduces heating efficiency and can produce soot.
This is almost always caused by dirty or clogged burner ports. When the small holes around the burner head get blocked with food debris, it disrupts the even flow of gas, leading to poor flame quality.
Oven Not Heating or Temperature Inaccuracy
An oven that won’t heat up or maintain the correct temperature can ruin any meal. You might notice that your NXR oven takes forever to preheat, or that recipes are consistently undercooked. This points to a problem with the heating or temperature regulation system.
The most common culprit is a faulty oven igniter (glow bar). Over time, these components can weaken and fail to draw enough current to open the gas valve, even if they still glow orange.
Emergency Signal: The Smell of Gas
A faint smell of gas when the oven first ignites can be normal. However, a strong, persistent gas odor is a serious safety hazard that requires immediate action. This indicates a potential gas leak from the supply line or a malfunctioning component.
Do not ignore this sign. A gas leak can be caused by a loose connection fitting or a faulty internal part and must be addressed immediately by shutting off the gas supply.
Your Step-by-Step NXR Troubleshooting Playbook
Now that you have identified the potential problem, it is time to work on the solution. These detailed, actionable steps will guide you through the most effective fixes for your NXR range. Always unplug the range and turn off the gas supply before beginning any work.
Reviving Your Burners: The Definitive Deep Clean
Solving ignition and flame problems starts with a meticulous cleaning. Remove the cast-iron grates and the burner caps. Lift the burner heads straight up to remove them from the range top.
Use a stiff brush and warm, soapy water to scrub the burner heads and caps. Pay special attention to the small gas ports around the perimeter of the burner head. Use a straightened paperclip, a sewing needle, or a specialized port cleaning tool to clear every single hole of baked-on debris. Do not use a toothpick, as it can break off inside the port. Rinse thoroughly and let the parts dry completely before reassembly, as any moisture can prevent ignition.
Fixing Oven Temperature and Heating Issues
If your oven isn’t heating correctly, first check the igniter. For most NXR models, you can observe the igniter through the broiler drawer or by removing the oven floor panel. Watch it during a preheat cycle; it should glow bright orange or yellow within 60-90 seconds. A dull red glow indicates a weak igniter that needs replacement.
Also, inspect the oven door gasket for any cracks, tears, or hardening. A poor seal allows heat to escape, leading to temperature fluctuations. If the gasket is damaged, it should be replaced. While some component replacements are straightforward, tasks involving the appliance’s core electrical systems require expertise. Attempting to replace an electrical panel without a permit is dangerous, and similarly, unqualified electrical work on a range can lead to serious safety risks.
What to Do Immediately If You Smell Gas
If you detect a strong gas odor, do not operate any electrical switches, unplug any devices, or use a telephone in the area, as this could create a spark. Immediately open windows to ventilate the room. Understanding your home’s ventilation is crucial; knowing the difference between full screen vs. half screen double hung windows can impact how quickly you can air out a space. After ventilating, turn off the main gas supply valve to the range. Contact a qualified gas appliance technician to diagnose and repair the leak.
Achieving the Perfect Blue Flame
If your flames are yellow after a thorough cleaning, the air-to-gas ratio may need adjustment. Each burner has an air shutter, which is a small metal collar with an opening located on the gas tube beneath the cooktop. Loosening the screw on this shutter allows you to rotate it, opening or closing the aperture to adjust airflow. A small adjustment is usually all that is needed. The goal is a steady, quiet, blue flame.
| Problem | Likely Cause | Recommended Solution |
|---|---|---|
| Burner clicks but won’t light | Dirty igniter or clogged burner ports | Clean the ceramic igniter and clear all burner ports with a needle. Ensure parts are completely dry. |
| Weak or yellow flame | Clogged burner ports or incorrect air shutter adjustment | Perform a deep cleaning of the burner head. If the problem persists, adjust the air shutter. |
| Oven not heating | Weak or failed oven igniter | Observe the igniter during preheating. If it glows a dull red or not at all, it needs replacement. |
| Oven temperature is inaccurate | Faulty temperature sensor or bad door seal | Test the sensor with a multimeter or check the door gasket for damage and replace if necessary. |
| Strong smell of gas | Gas leak | IMMEDIATE ACTION REQUIRED: Do not use electronics. Ventilate the area, shut off the gas supply, and call a professional technician. |
Proactive Care: Preventing NXR Range Problems Before They Start
The best way to deal with NXR range problems is to prevent them from happening. Regular maintenance and proper care will significantly extend the life of your appliance and ensure it performs safely and efficiently. A consistent routine is your best defense against common issues.
Your Weekly Cleaning Ritual
Commit to a weekly cleaning schedule. Wipe up spills as soon as they happen to prevent them from burning onto the surface. Once a week, remove the grates and burner caps for a wash in warm, soapy water. This simple habit prevents the buildup that leads to most ignition and flame problems.
Maintaining your range’s exterior is also important. Just as you want to avoid a situation where the cut in paint is darker than the rolled section on your walls, you want a consistent, clean finish on your appliance. Use a stainless steel cleaner to keep the exterior free of grease and fingerprints, preserving its professional look.
The Value of an Annual Professional Service
While DIY maintenance is effective, having your NXR range inspected by a qualified technician once a year is a wise investment. A professional can check gas connections, test safety valves, inspect electrical components, and calibrate the oven thermostat for accuracy.
This professional check-up ensures your range is operating not just effectively, but safely. It provides peace of mind and can catch small issues before they evolve into major, more expensive repairs.
Frequently Asked Questions
Why do my NXR range burners keep clicking after they are lit?
Continuous clicking after the burner is lit is a common issue, often caused by moisture, food debris, or a warped burner piece interrupting the ignition system. Cleaning the burner components and ensuring they are dry and properly aligned can often resolve this. In some cases, the brass burners may warp over time, requiring them to be leveled.
What should I do if my NXR stove top burner won’t light?
If a burner fails to ignite, the most common causes are a clogged gas line or a faulty igniter. You should first ensure the gas valve is open and then check for any food debris or blockages in the burner. If the igniter doesn’t spark when you turn the knob, it may be faulty and need replacement.
Why is my NXR oven not heating up or not reaching the correct temperature?
Several issues can cause your NXR oven to not heat properly, including a faulty heating element, a defective oven thermostat, or a broken oven sensor. A visual inspection may reveal a burnt-out heating element. However, diagnosing a faulty thermostat or sensor may require professional assistance to ensure accurate temperature regulation.
What causes an uneven or weak flame on my NXR range burners?
An uneven or weak flame is often due to clogged burner ports or an improper air-to-gas mixture. Cleaning the burner heads with a small wire or pipe cleaner can clear any blockages. If the flame is yellow or orange instead of blue, it may indicate incomplete combustion that requires attention.
Why isn’t my NXR range’s broiler working?
A non-functioning broiler can be the result of a faulty igniter, gas flow problems, or a broken thermostat. You can start by checking if the igniter glows when the broiler is turned on; if not, it likely needs to be replaced. Problems with the gas supply or a defective safety valve can also prevent the broiler from igniting and may require a technician to diagnose.
I smell gas, but the burner won’t ignite. What should I do?
If you smell gas but the burner does not light, you may have a gas flow issue or a problem with the igniter. Immediately turn off the burner and ensure the gas supply is steady and the valve is open. If the smell persists, you should shut off the gas supply to the range and contact a qualified technician for assistance.
