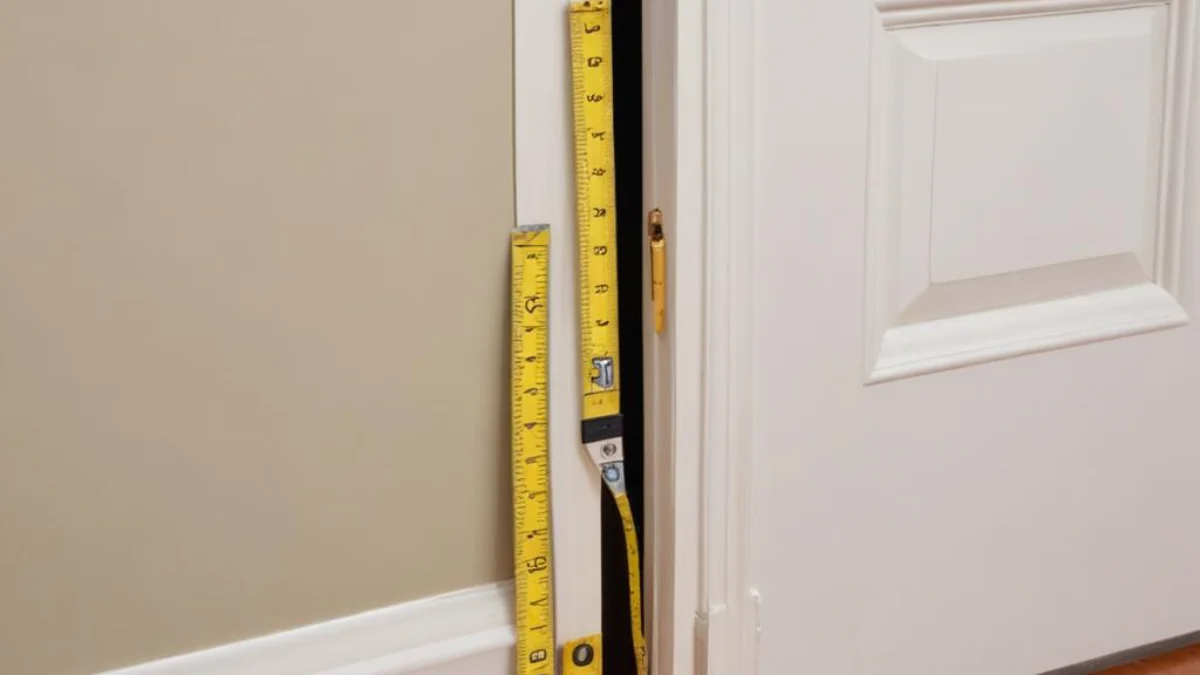

How to Measure a Door Without Removing Trim? Unlock the Secret
Replacing a door can dramatically update your home’s look and feel, but the thought of ripping off perfectly good trim just to get a measurement can be daunting. It’s a common homeowner’s dilemma: you need accurate dimensions for a new door slab or pre-hung unit, but you want to avoid the extra work and potential damage of removing the casing. Fortunately, with the right technique, you can get precise measurements while leaving your trim completely intact.
This guide will walk you through the professional method for measuring a door without the hassle of prying off your trim. We’ll cover everything from the essential tools you’ll need to the specific measurements required for a perfect fit, ensuring your door replacement project goes smoothly from start to finish.
You'll Learn About
Why Measuring Without Removing Trim is a Smart Move
The primary reason homeowners hesitate to remove trim is to avoid damage. Prying off casing can easily lead to cracked paint, split wood, or damaged drywall, creating more repair work than you bargained for. Keeping the trim in place is not only cleaner but also significantly faster, turning a potentially large project into a manageable task.
By learning this non-invasive technique, you can confidently order a replacement door, knowing it will fit the existing frame. This is especially crucial if you’re only replacing the door slab and intend to keep the original jamb and trim. A precise measurement is the first step to a seamless installation.
Essential Tools for the Job
You don’t need a professional’s toolkit to get this right. A few basic items are all that’s required for accurate measurements:
- Tape Measure: A quality, retractable tape measure is your most important tool.
- Pencil and Notepad: To accurately record your dimensions. Always remember the old saying: “measure twice, cut once.”
- Level: While optional, a level can help you check if your existing door frame is square and plumb, which can affect the new door’s fit.
Step-by-Step Guide: Measuring for a Replacement Door Slab
If your door frame is in good condition and you’re only replacing the door itself (the “slab”), the process is straightforward. You will be measuring the existing door while it is still hanging on its hinges.
1. Measure the Door Width
The width is the most critical measurement. Because doors can swell or shift over time, it’s essential to measure at three different points. Open the door and measure the horizontal distance across the face of the door at the top, middle, and bottom.
Record the narrowest measurement of the three. This ensures that the new door won’t be too wide and bind against the frame. Most interior doors have a standard thickness, but it is always good practice to confirm.
2. Measure the Door Height
Similar to the width, measure the vertical height of the door in three locations: the left side, the middle, and the right side. Be sure to measure the door slab itself, from the top edge to the bottom edge. Do not include any door sweeps in your measurement.
Record the tallest measurement as the height. This provides a baseline, and doors can often be trimmed slightly at the bottom if needed to accommodate flooring.
3. Measure the Door Thickness
The thickness is a simple but vital measurement. Just measure the edge of the door to determine how thick it is. Standard interior doors are typically 1 3/8 inches thick, while exterior doors are often 1 3/4 inches thick. Mismatched thickness can cause issues with the door fitting into the jamb stops correctly.
Measuring for a Pre-Hung Door Unit Without Removing Trim
If you’re replacing the entire door unit, including the frame and jamb, you’ll need to measure the opening differently. While the most accurate method involves measuring the rough opening behind the trim, you can get a very close estimate without removing it.
1. Measure the Opening Width Inside the Jamb
Open the door and measure the width of the opening from the inside face of one side jamb to the inside face of the opposite jamb. Take this measurement at the top, middle, and bottom, and use the smallest number. This gives you the clear opening space.
To estimate the full pre-hung unit width, you’ll need to account for the thickness of the jamb material. A standard jamb is about 3/4 inch thick on each side. So, you would add approximately 1.5 inches (3/4 inch x 2) to your smallest inside measurement to get the estimated unit width.
2. Measure the Opening Height
Measure the height from the finished floor (or the top of the threshold for an exterior door) to the underside of the top jamb. Take this measurement on both the left and right sides and use the shorter dimension. For a pre-hung unit, add about 3/4 inch to this measurement to account for the thickness of the top jamb.
3. Determine the Jamb Depth
The jamb depth needs to match the thickness of your wall. To measure this without removing trim, open the door and measure from the interior edge of the door stop to the exterior edge of the jamb. This measurement should be close to standard wall thicknesses, like 4 9/16 inches for 2×4 walls or 6 9/16 inches for 2×6 walls. An incorrect jamb depth is a common issue that can be easily avoided.
For some homes, draft issues are a concern. Ensuring your new door seals properly is key, but sometimes a good top of door draft stopper can provide an extra layer of protection against energy loss.
| Measurement Type | Where to Measure | Key Consideration |
|---|---|---|
| Slab Width | Top, Middle, Bottom of the existing door | Use the narrowest measurement |
| Slab Height | Left, Middle, Right of the existing door | Use the tallest measurement |
| Thickness | Edge of the existing door | Typically 1 3/8″ (interior) or 1 3/4″ (exterior) |
| Jamb Depth | From door stop to the outer edge of the jamb | Must match wall thickness (e.g., 4 9/16″) |
Final Checks and Common Pitfalls
Before placing an order, always double-check your numbers. A small mistake in measurement can lead to a door that doesn’t fit, causing significant delays and frustration. One common problem is a door frame that isn’t perfectly square. Use a level to check the top jamb and side jambs for plumb and level.
Also, determine the “handing” or swing direction of your door. Stand with your back to the hinges; whichever side the doorknob is on determines the handing (e.g., if the knob is on your left, it’s a left-handed door). A door with the wrong swing can be a major inconvenience. Sometimes, issues aren’t with the door itself, but with its components, such as a storm door closer ripped out of its frame, which indicates a need for a more secure installation.
While these tips are focused on standard passage doors, the principles can apply elsewhere. For instance, understanding how components fit together is also crucial for projects like installing garage door insulation retainer clip uses. By taking careful and precise measurements, you empower yourself to tackle your door replacement project with confidence, saving time and avoiding unnecessary repairs.
Frequently Asked-Questions
Why should I measure a door without removing the trim?
Measuring with the trim on saves time and helps prevent potential damage to the trim, paint, or wall. This method is ideal when you only need to replace the door itself, known as the door slab, and plan to keep the existing frame.
What tools are required for this?
You will only need a reliable tape measure. A rigid tape measure is best to ensure it doesn’t bend or sag, which helps in getting the most accurate measurements for the door’s height and width.
How do I measure the width of the door accurately?
Measure the width of the door slab itself by running your tape measure from the left edge to the right edge. It is recommended to measure at the top, middle, and bottom and use the widest measurement. Be careful not to include the door frame or trim in this measurement.
What is the correct way to measure the height?
To measure the height, place your tape measure at the top edge of the door and extend it to the bottom edge. Do not include any weather stripping or a door sweep at the bottom in your measurement. It’s a good practice to measure both the left and right sides and use the taller figure.
How do I determine the door’s thickness?
Open the door and measure the thickness of its edge. Standard interior doors are typically 1 3/8 inches thick, while most exterior doors are 1 3/4 inches thick to provide better security and insulation.
